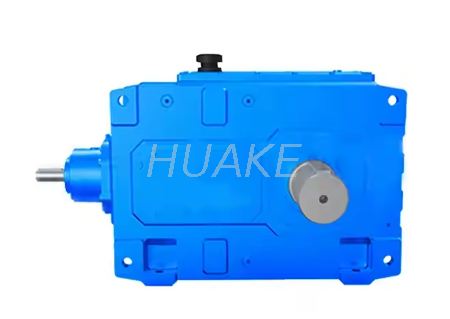

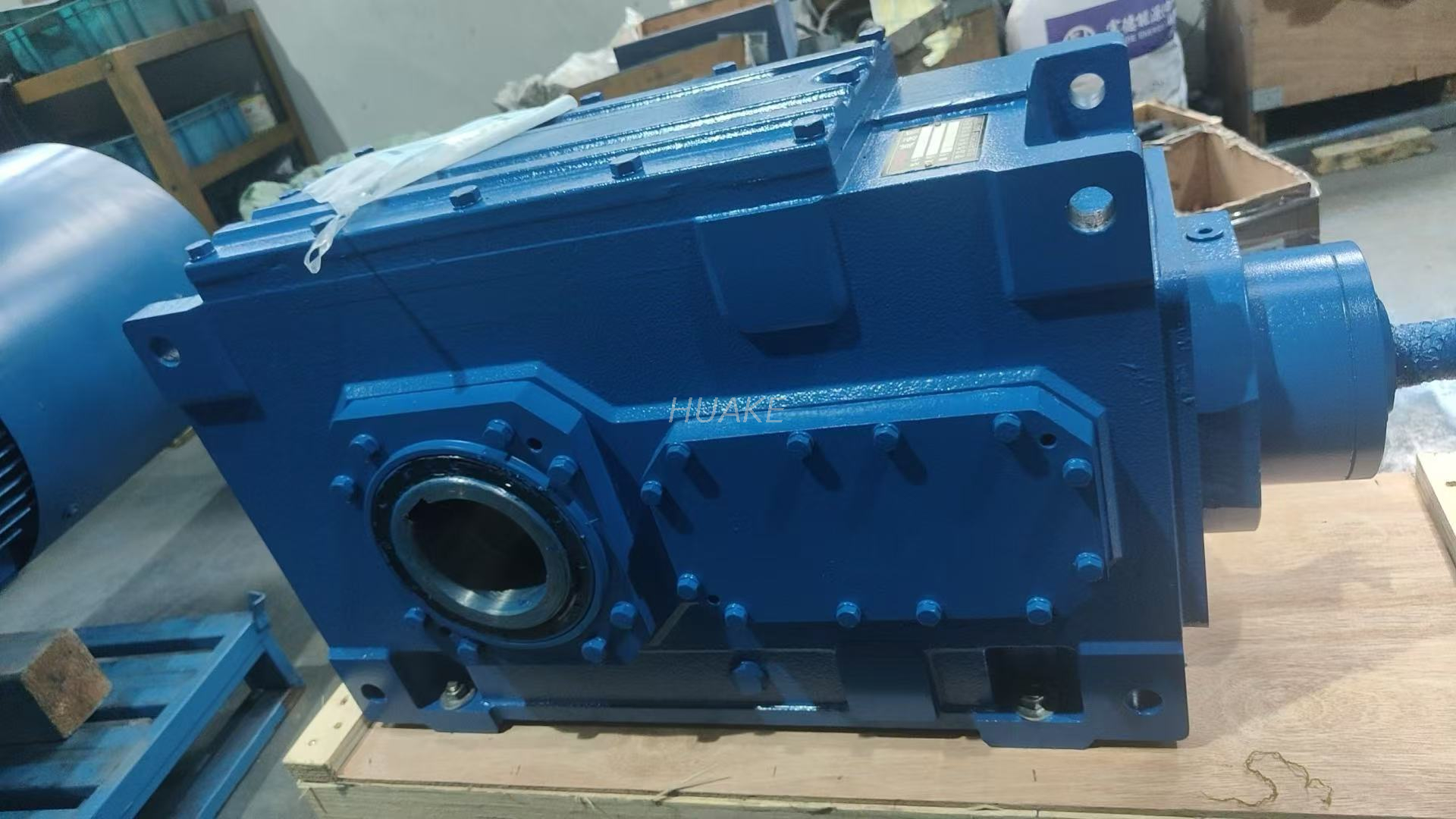

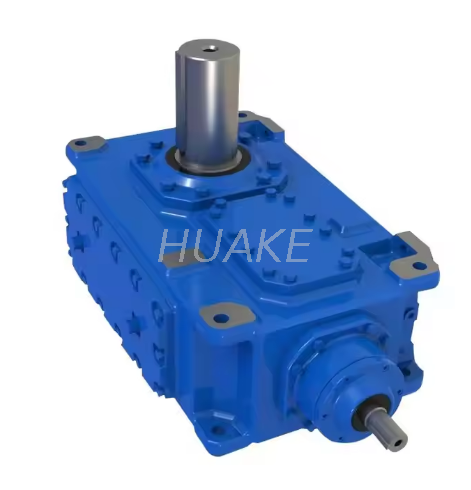

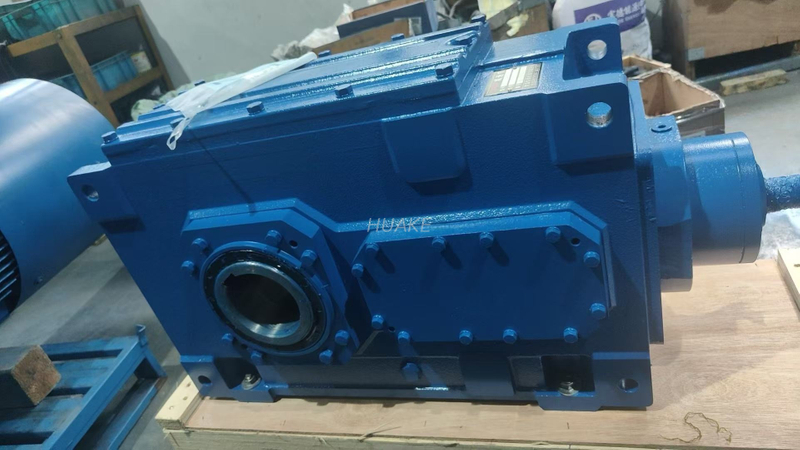

HB Series Industrial Gear Boxgear Box-B series products

HB high power gear reducer is a general design scheme to achieve parallel shaft, vertical shaft, horizontal universal box reducer. Reducer adopts sound absorption box body structure, large box surface area and large fan, cylindrical gear and spiral bevel gear adopt advanced grinding process, so that the temperature rise of the whole machine, reduce noise, improve the reliability of operation, and increase the transmission power.

Availability:

Quantity:



Inquire Add to Basket

Model:
B2SH4 B2SH5 B2SH6 B2SH7 B2SH8 B2SH9 B2B2SH10 B2SH11 B2SH12 B2SH13 B2SH14 B2SH15 B2SH16 B2SH17 B2SH18 B3SH4 B3SH5 B3SH6 B3SH7 B3SH8 B3SH9 B3SH10 B3SH11 B3SH12 B3SH13 B3SH14 B3SH15 B3SH16 B3SH1
Brand:
HUAKE

Product Description

Cast Iron or Steel Plate Welding
Gear Set:
H Series Parallel Shaft Gear Units - Helical Gear Pairs

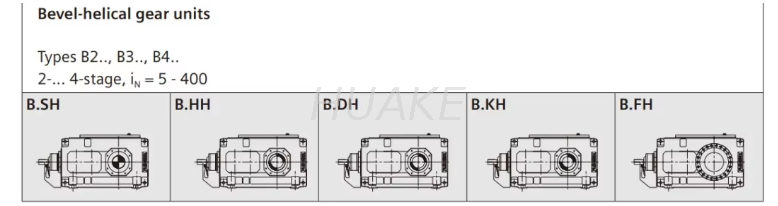

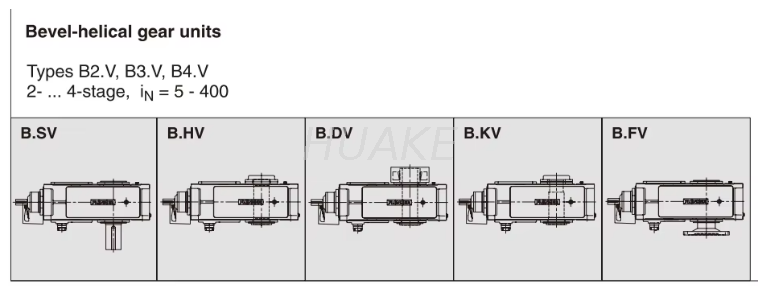

B Series Right Angle Gearboxes - Helical Gear Pairs & Spiral Bevel Gear Pairs
Input Configurations:
Keyed Solid Shaft Input
IEC-normalized Flange Motor Adaptor Output Configurations:
Single and Double Keyed Solid Shaft Output
Keyway Hollow Shaft Output
Splined Hollow Shaft Output
Hollow Shaft Output with Shrink Disc
Hollow Shaft Output with Mounting Flange

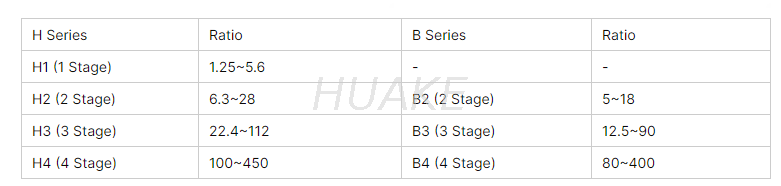

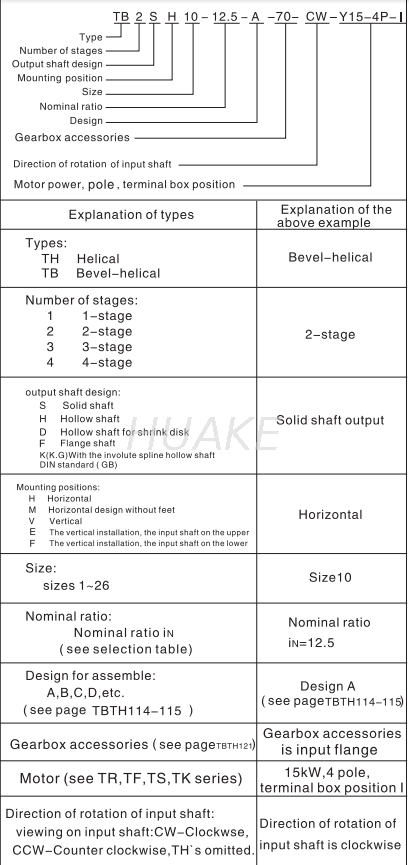

5df373955c8a317ae6b710a2e3cdedb HB系列速比 B系列介绍1 B系列介绍2
