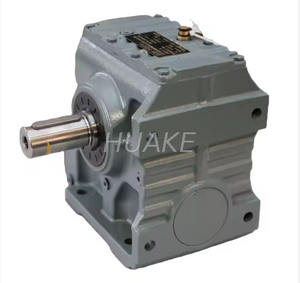

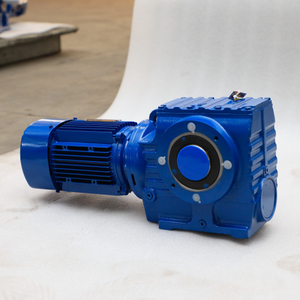

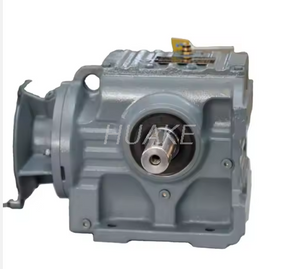

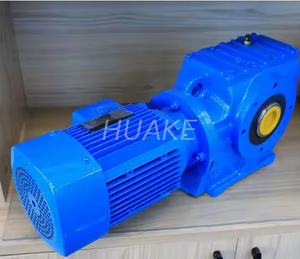

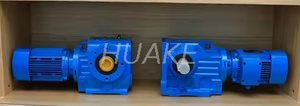

S Series Gear Motor-SF37

S-series helical gear - turbine reducer inside several helical gear and worm organically combined together, through the external motor and other equipment to provide power, the interaction between gear and worm or the use of external force, so that the reducer is in a state of working balance.
Although this reducer is also a helical gear reducer, it takes the form of a turbo worm. The S-Series reducer has an output speed range of 425r/min, a torque range of 0.12 to 22KW, and a power range of 0.12 to 22KW

Availability:

Quantity:



Inquire Add to Basket

Model:
SF37,SF47,SF57,SF67,SF77,SF87,SF97
Brand:
HUAKE

Product Description

1.S series helical gear worm reducer has a high scientific and technological content, with helical gear and worm gear combined with one drive, improve the machine torque and efficiency. This series of products has complete specifications, wide speed range, good versatility, suitable for various installation methods, safe and reliable performance, long life, and the implementation of international standards.

2. The body surface concave and convex has heat dissipation effect, strong vibration absorption, low temperature rise, low noise.

3. The machine has good sealing performance and strong adaptability to the working environment.

4. The machine has high transmission accuracy, especially suitable for working on occasions with frequent start, can be connected with various types of reducer and configured with various types of motor drive, and can be installed in the 90-degree transmission operation position.

5. The key parts of the gear motor are made of high wear-resistant materials, and have been subjected to special heat treatment, with high machining precision, smooth transmission, small volume, large bearing capacity, long life and so on.

6. The reducer can be configured with various types of motors, forming a mechanical and electrical integration, and fully ensuring the quality characteristics of product use.

S系列产品简介图安装方式及接线盒位置
