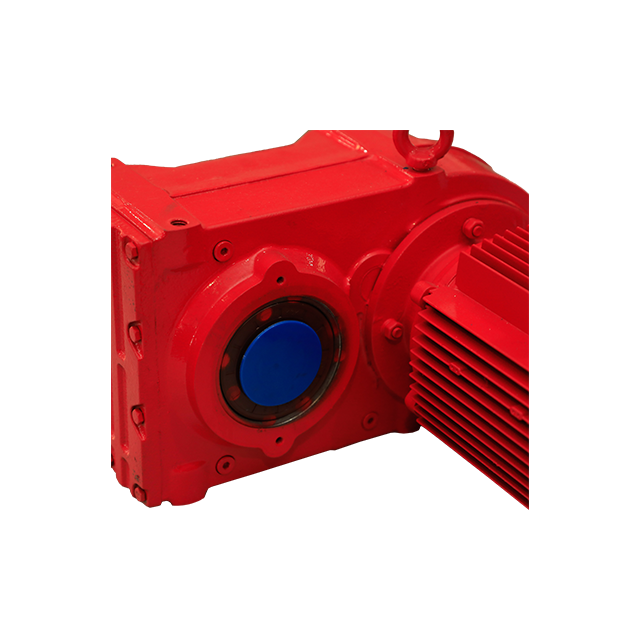

F Series Gear Motor

Product Overview

The F Series Parallel Shaft Gear Motor adopts parallel shaft helical gear transmission technology, which is specially designed for high-frequency start-stop and continuous heavy-load conditions. It is suitable for a power range of 0.1kW-160kW, and the torque output covers 50N·m to 25,000N·m. This series of Gear Motors achieves rapid matching of reducers and motors through modular combination design. It is widely used in engineering machinery, steel smelting, port lifting and other fields, and meets the stable operation requirements in harsh environments such as high temperature and high dust.

Product Features

Parallel shaft high-efficiency transmission

Gear meshing efficiency reaches 95%, which saves 15%-20% energy compared with the worm gear structure.

Heavy-load bearing capacity

The gear material is 20CrMnTi alloy steel, and the tooth surface contact strength is ≥1100MPa.

Multiple protection design

Standard IP65 protection level, optional IP68 sealing and anti-corrosion coating.

Intelligent temperature control guarantee

Built-in temperature sensor, automatic overheating alarm (threshold setting: -20℃~150℃).

Flexible installation configuration

Supports 6 mechanical interface combinations such as solid shaft, hollow shaft, flange installation, etc.

Product advantages

Strong impact resistance: 3 times instantaneous overload capacity, passed 50,000 start-stop life test.

Global voltage adaptation: The motor can be selected in 8 voltage specifications such as 380V/50Hz, 480V/60Hz.

Low maintenance cost: oil bath lubrication system, oil change cycle ≥20,000 hours.

Typical application scenarios

F series Gear Motor provides core driving force for the following industries:

Engineering machinery: concrete mixing station, crawler crane travel drive

Metallurgical industry: rolling mill auxiliary drive, high-temperature grate conveying

Port equipment: container gantry crane, belt conveyor tensioning system

New energy field: biomass pellet molding machine, wind power variable pitch drive

FAQ High frequency technical consultation

Q1: Does F series Gear Motor support inverter control?

Yes. Compatible with V/F control and vector frequency conversion, recommended carrier frequency ≤8kHz to reduce gear impact.

Q2: How to choose the matching solution between reduction ratio and motor power?

Provide online selection tool, input load torque (N·m) and speed (rpm) to automatically generate configuration suggestions.

Q3: How to deal with oil leakage in gearbox?

Check the aging of seals, it is recommended to replace the shaft seal (material: fluororubber FKM) every 5 years.

Q4: Can you provide explosion-proof certified models?

Ex d IIC T4 Gb explosion-proof models can be customized, in compliance with ATEX and IECEx standards.
